ANSI B18.2.6 Hex Bolt
Leader-Fastener® is a manufacturer and distributor of ANSI B18.2.6 Hex Bolt. We have a complete line of service from having invested in production plants, export department and to having a quality control team and center to meet your requirements. We regard quality as the life of the company. We persist in good quality as the first policy and have established a set of quality control and inspection system according to the international standard. We have carried out ISO9001 Quality Guarantee System in every course of production, transportation and selling. We do hope we could be your partner in business by topping quality, knight service and competitive price in the near future and be your friends as well.
Send Inquiry PDF DownLoad
Product Description

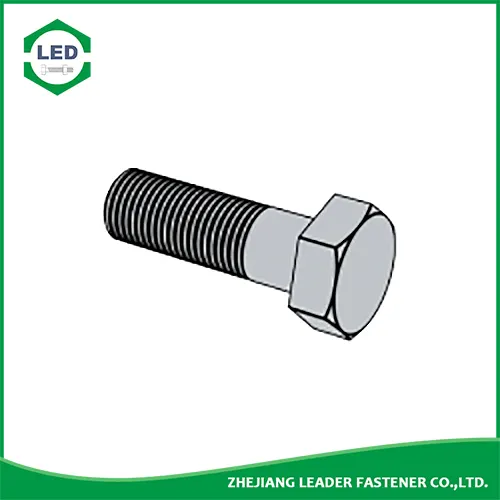

ANSI B18.2.6 Heavy Hex Structural Bolt (A325 or A490) by Material, Finish and Size
Leader-Fastener® ANSI B18.2.6 Hex Bolts are designed for high-strength steel to steel structural connections. Dimensionally, hex structural bolts are covered by the ASME B18.2.6 standard, and the material specifications are now covered by ASTM F3125 which replaced ASTM A325 and A490. In metric use, structural bolts are covered by DIN 6914, DIN EN 14399-4, ISO 7412 and material Classes 8.8 and 10.9.
Structural bolts have a high strength steel and are used in structural steelwork with high strength nuts and hardened steel washers. When they are tightened to a given minimum shank tension they are often abbreviated to HSFG (high strength friction grip) bolts. These bolts are usually short and have a heavy, large head, which helps to distribute load effectively. The head of the heavy hex structural bolt is specified to be the same size as the heavy hex nut of the same nominal diameter, allowing the bolt head and nut to be accessed with the same size wrench or socket.
Leader-Fastener® ANSI B18.2.6 Heavy Hex Structural Bolt (A325 or A490)
| Thread Size | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1-1/8 | 1-1/4 | 1-3/8 | 1-1/2 | |
| PP | UNC | 13 | 11 | 10 | 9 | 8 | 7 | 7 | 6 | 6 |
| UNF | 20 | 18 | 16 | 14 | 12 | 12 | 12 | 12 | 12 | |
| UNEF | 28 | 24 | 20 | 20 | 20 | 18 | 18 | 18 | 18 | |
| ds | max | 0.515 | 0.642 | 0.768 | 0.895 | 1.022 | 1.149 | 1.277 | 1.404 | 1.531 |
| min | 0.482 | 0.605 | 0.729 | 0.852 | 0.976 | 1.098 | 1.223 | 1.345 | 1.47 | |
| s | Nominal Size | 7/8 | 1-1/16 | 1-1/4 | 1-7/16 | 1-5/8 | 1-13/16 | 2 | 2-3/16 | 2-3/8 |
| max | 0.875 | 1.062 | 1.25 | 1.438 | 1.625 | 1.812 | 2 | 2.188 | 2.375 | |
| min | 0.85 | 1.031 | 1.212 | 1.394 | 1.575 | 1.756 | 1.938 | 2.119 | 2.3 | |
| e | max | 1.01 | 1.227 | 1.443 | 1.66 | 1.876 | 2.093 | 2.309 | 2.526 | 2.742 |
| min | 0.969 | 1.175 | 1.383 | 1.589 | 1.796 | 2.002 | 2.209 | 2.416 | 2.622 | |
| k | Nominal Size | 5/16 | 25/64 | 15/32 | 35/64 | 39/64 | 11/16 | 25/32 | 27/32 | 15/16 |
| max | 0.323 | 0.403 | 0.483 | 0.563 | 0.627 | 0.718 | 0.813 | 0.878 | 0.974 | |
| min | 0.302 | 0.378 | 0.455 | 0.531 | 0.591 | 0.658 | 0.749 | 0.81 | 0.902 | |
| b | Ref. | 1 | 1.25 | 1.38 | 1.5 | 1.75 | 2 | 2 | 2.25 | 2.25 |
| r | max | 0.031 | 0.062 | 0.062 | 0.062 | 0.093 | 0.093 | 0.093 | 0.093 | 0.093 |
| min | 0.009 | 0.021 | 0.021 | 0.021 | 0.062 | 0.062 | 0.062 | 0.062 | 0.062 | |
Chemical and mechanical properties of steel bolts shall conform to ASTM F3125/F3125M.
