DIN 186 T Bolts
Leader-Fastener® is a manufacturer and distributor of DIN 186 T Bolts . We have a complete line of service from having invested in production plants, export department and to having a quality control team and center to meet your requirements. We regard quality as the life of the company. We persist in good quality as the first policy and have established a set of quality control and inspection system according to the international standard.We have carried out ISO9001 Quality Guarantee System in every course of production, transportation and selling.We do hope we could be your partner in business by topping quality, knight service and competitive price in the near future and be your friends as well.
Send Inquiry PDF DownLoad
Product Description

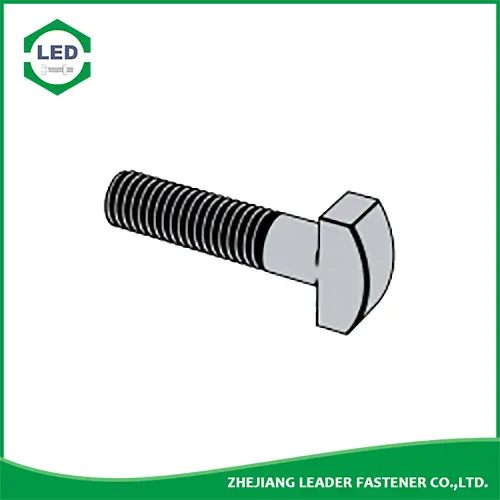

DIN 186 - T-Head bolts with square neck Head
Leader-Fastener® T-Head Bolts, also knows as Hammer Head Bolts, T-Slot Bolts and Tank Strap Bolts, have either a Tee or square shaped head. Normally they are are installed into a hole with a tee shaped slot so that the head of the bolt can sit flush, and the shape of the bolt resists turning while tightening.
Metric DIN 186 T Bolts have a T-shaped head which can fit into a pre-cut slot or can be easily gripped by a standardwrench. DIN 186 T-Head bolts are partiallythreaded along their shank, the thread length depending primarily on the lengthof the bolt. The square neck right beneath the head seats into the hole, preventing the bolt from rotating in its hole. T-head bolts can be used for most applications involving tensioning and clamping.
Leader-Fastener® DIN 186 - 2010 T-head Bolts with Square Neck
| Screw Thread d | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | |
| P | Pitch | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 |
| ds | Nominal Size | 6 | 8 | 10 | 12 | 16 | 20 | 24 | 30 | 36 | 42 | 48 |
| max | 6.48 | 8.58 | 10.58 | 12.7 | 16.7 | 20.84 | 24.84 | 30.84 | 37 | 43 | 49 | |
| min | 5.52 | 7.42 | 9.42 | 11.3 | 15.3 | 19.16 | 23.16 | 29.16 | 35 | 41 | 47 | |
| k | Nominal Size | 4.5 | 5.5 | 7 | 8 | 10.5 | 13 | 15 | 19 | 23 | 26 | 30 |
| max | 4.9 | 5.9 | 7.5 | 8.75 | 11.4 | 13.9 | 15.9 | 20 | 24 | 27 | 31 | |
| min | 4.1 | 5.1 | 6.5 | 7.25 | 9.6 | 12.1 | 14.1 | 18 | 22 | 25 | 29 | |
| n | Nominal Size | 6 | 8 | 10 | 12 | 16 | 20 | 24 | 30 | 36 | 42 | 48 |
| max | 6.6 | 8.75 | 10.75 | 12.9 | 16.9 | 21 | 25 | 31 | 37.25 | 43.25 | 49.25 | |
| min | 5.4 | 7.25 | 9.25 | 11.1 | 15.1 | 19 | 23 | 29 | 34.75 | 40.75 | 46.75 | |
| m | Nominal Size | 16 | 18 | 21 | 26 | 30 | 36 | 43 | 54 | 66 | 80 | 88 |
| min | 15.1 | 17.1 | 20 | 25 | 29 | 34.75 | 41.75 | 52.5 | 64.5 | 78.5 | 86.25 | |
| max | 16.9 | 18.9 | 22 | 27 | 31 | 37.25 | 44.25 | 55.5 | 67.5 | 81.5 | 89.75 | |
| r1 | ≈ | 0.5 | 0.5 | 0.5 | 1 | 1 | 1 | 1.6 | 1.6 | 2 | 2 | 2 |
| r2 | max | 0.9 | 1.2 | 1.5 | 1.8 | 2.4 | 3 | 3.6 | 4.5 | 5.4 | 6.3 | 7.2 |
| Weight of per 1000 steel products(≈kg) | - | - | - | - | - | - | - | - | - | - | - | |
| Length of Thread b | - | - | - | - | - | - | - | - | - | - | - | |
①,Threaded chamfered end (CH) or rounded end (RN) according to DIN EN ISO 4753 according to the manufacturer's choice
②,For L > 200 mm. Lengths over 200 mm are to be stepped from 20 mm to 20 mm. The following applies to these lengths: Thread length b = 2 d + 25 mm or as agreed.
③,Form A，with shaft
Form B，with long thread
④,r2, max.= 0.15×d
⑤,a) Material: Steel
b) Mechanical properties : Strength class (Material)≤M39，4.6; > M39 by arrangement ; standard DIN ISO 898-1
