DIN 609 Hex Bolt
Leader-Fastener® is a manufacturer and distributor of DIN 609 Hex Bolt. We have a complete line of service from having invested in production plants, export department and to having a quality control team and center to meet your requirements. We regard quality as the life of the company. We persist in good quality as the first policy and have established a set of quality control and inspection system according to the international standard. We have carried out ISO9001 Quality Guarantee System in every course of production, transportation and selling. We do hope we could be your partner in business by topping quality, knight service and competitive price in the near future and be your friends as well.
Send Inquiry PDF DownLoad
Product Description

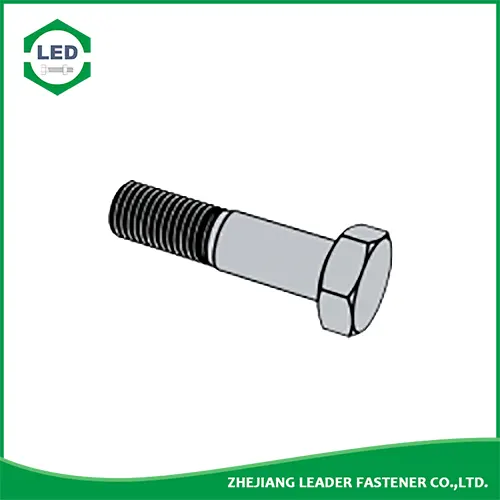

DIN 609 - Hexagon fits bolts with long thread
Leader-Fastener® DIN 609 Hex Bolt (Fit Bolt) with long threaded portion by Material, Finish and Size. Shoulder Screws, also called Shoulder Bolts or Stripper Bolts, are fasteners with three distinct sections: the head, the unthreaded shank, and the threaded section which is smaller in diameter than the shoulder. The change in diameter between the threaded section and the shank provides the shoulder, against which the shoulder bolt can be tightened. These can have different types of head, but frequently have socket heads.
Metric DIN 609 Hex Head Shoulder, this standard specifies dimensions and technical delivery conditions for M8 to M52 hexagon fit bolts, assigned to product grade A (for size M10 or less) or product grade B (for size M12 or greater).
Leader-Fastener® DIN 609 - 2016 Hexagon Fits Bolts With Long Thread
| Screw Thread d | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | ||
| P | Pitch | Coarse thread | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 |
| Fine thread-1 | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | ||
| Fine thread-2 | - | 1 | 1.5 | - | - | 2 | 2 | 2 | 1.5 | ||
| b | L≤50 | 14.5 | 17.5 | 20.5 | 22 | 25 | 27.5 | 28.5 | 32.5 | - | |
| 50＜L≤ 150 | 16.5 | 19.5 | 22.5 | 24 | 27 | 29.5 | 30.5 | 34.5 | 36.5 | ||
| L＞150 | 21.5 | 24.5 | 27.5 | 29 | 32 | 34.5 | 35.5 | 39.5 | 41.5 | ||
| ds | Nominal Size (K6) | 9 | 11 | 13 | 15 | 17 | 19 | 21 | 23 | 25 | |
| min | 9.001 | 11.001 | 13.001 | 15.001 | 17.001 | 19.002 | 21.002 | 23.002 | 25.002 | ||
| max | 9.01 | 11.012 | 13.012 | 15.012 | 17.012 | 19.015 | 21.015 | 23.015 | 25.015 | ||
| d0 | min | 7.9 | 9.9 | 11.5 | 13.5 | 15.5 | 17.5 | 19.1 | 21.1 | 23.1 | |
| max | 8.2 | 10.2 | 11.8 | 13.8 | 15.8 | 17.8 | 19.4 | 21.4 | 23.4 | ||
| e | min | 14.38 | 17.77 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | |
| k | Nominal Size | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | |
| min | 5.15 | 6.22 | 7.21 | 8.51 | 9.71 | 11.15 | 12.15 | 13.65 | 14.65 | ||
| max | 5.45 | 6.58 | 7.79 | 9.09 | 10.29 | 11.85 | 12.85 | 14.35 | 15.35 | ||
| k1 | min | 3.61 | 4.35 | 5.05 | 5.96 | 6.8 | 7.81 | 8.51 | 9.65 | 10.26 | |
| r | min | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | |
| max | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75 | 0.95 | 0.95 | 0.95 | ||
| s | max=nominal size | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | |
| min | 12.73 | 15.73 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | ||
| Lg (max) | - | - | - | - | - | - | - | - | - | ||
| Weight of per 1000 steel products(≈kg) | - | - | - | - | - | - | - | - | - | ||
| Screw Thread d | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | ||
| P | Pitch | Coarse thread | 3 | 3.5 | 3.5 | 4 | 4 | 4 | 4 | 4 | 4 |
| Fine thread-1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| Fine thread-2 | - | - | - | - | - | - | - | - | - | ||
| b | L≤50 | - | - | - | - | - | - | - | - | - | |
| 50＜L≤ 150 | 39.5 | 43 | 45 | 49 | 51 | 56 | 59 | 63 | 65 | ||
| L＞150 | 44.5 | 48 | 50 | 54 | 56 | 61 | 64 | 68 | 70 | ||
| ds | Nominal Size (K6) | 28 | 32 | 34 | 38 | 40 | 44 | 46 | 50 | 55 | |
| min | 28.002 | 32.002 | 34.002 | 38.002 | 40.002 | 44.002 | 46.002 | 50.002 | 55.002 | ||
| max | 28.015 | 32.018 | 34.018 | 38.018 | 40.018 | 44.018 | 46.018 | 50.018 | 55.021 | ||
| d0 | min | 25.7 | 29.7 | 31.7 | 35.7 | 37.7 | 41.7 | 43.7 | 47.7 | 52.7 | |
| max | 26 | 30 | 32 | 36 | 38 | 42 | 44 | 48 | 53 | ||
| e | min | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | |
| k | Nominal Size | 17 | 19 | 21 | 22 | 25 | 26 | 28 | 30 | 33 | |
| min | 16.65 | 18.58 | 20.58 | 21.58 | 24.58 | 25.58 | 27.58 | 29.58 | 32.5 | ||
| max | 17.35 | 19.42 | 21.42 | 22.42 | 25.42 | 26.42 | 28.42 | 30.42 | 33.5 | ||
| k1 | min | 11.66 | 13.01 | 14.41 | 15.11 | 17.21 | 17.91 | 19.31 | 20.71 | 22.75 | |
| r | min | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| max | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 | ||
| s | max=nominal size | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | |
| min | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | ||
| Lg (max) | - | - | - | - | - | - | - | - | - | ||
| Weight of per 1000 steel products(≈kg) | - | - | - | - | - | - | - | - | - | ||
①,Centering hole Form A or Form R according to DIN 332-1 (centering is only required for screws with addition [larger shank diameter ds], for screws without added [finish screws] it is left to the manufacturer.)
②,Material:
a) Steel, Strength class: d≤39mm:8.8；d>39mm according to agreements . Standard DIN EN ISO 898-1
b) Stainless steel, Strength class: d≤20mm：A2-70；2039mm according to agreement. Standard DIN EN ISO 3506-1, DIN EN ISO 3506-3
c) Non-ferrous metal, Property class:CU2，CU3. Standard DIN EN 28839
