DIN 935 Castle Nut
Leader-Fastener® is a manufacturer and distributor of DIN 935 Castle Nut. We have a complete line of service from having invested in production plants, export department and to having a quality control team and center to meet your requirements. We regard quality as the life of the company. We persist in good quality as the first policy and have established a set of quality control and inspection system according to the international standard. We have carried out ISO9001 Quality Guarantee System in every course of production, transportation and selling. We do hope we could be your partner in business by topping quality, knight service and competitive price in the near future and be your friends as well.
Send Inquiry PDF DownLoad
Product Description

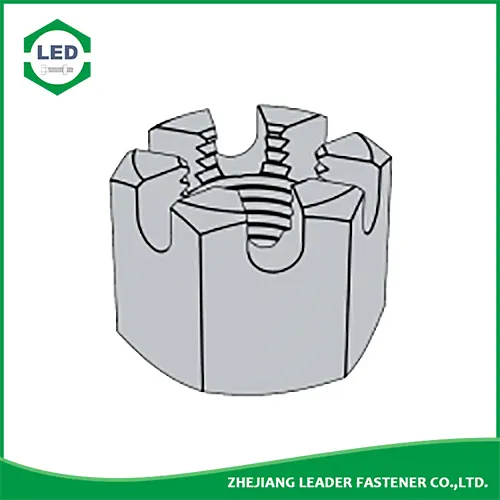

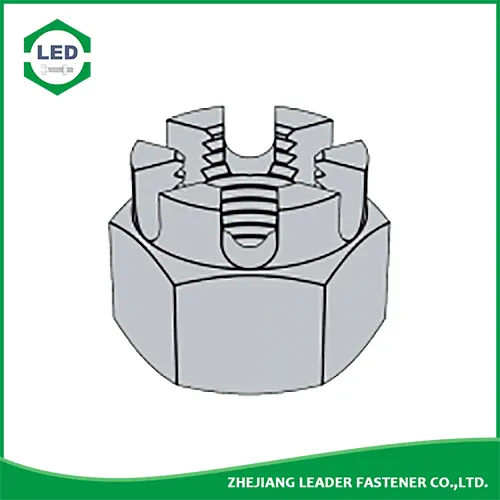

Metric DIN 935 Hexagon Slotted Castle Nut are hex nuts where slots are cut into one side of the nut (DIN 935 up to 12mm dia) or through the crown (> 12mm dia). These slots are designed to offer a locking feature where a split pin/cotter pin (DIN 94), R clip or safety wire can aligned through the slots and guided through a hole drilled in the shank of the mated bolt.
Product Specification of Leader-Fastener® DIN 935 Castle Nut
Material : Carbon steel, Stainless steel, Alloy Steel, Brass.
Finishment: Black, Zinc Plated, Zinc Yellow, HDG, Phosphate, DACROMET, Geomet, Magin, Ruspert, Teflon, etc.
Leader-Fastener® DIN 935-1 - 2013 Hexagon Slotted and Castle Nuts - Part 1: Metric Coarse and Fine Pitch Thread, Product Grades A and B
|
Thread Size D |
M4 | M5 | M6 | (M7) | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | |
| P | Pitch (Coarse thread) | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 |
| Fine thread-1 | - | - | - | - | 1 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 1.5 | 2 | 2 | 2 | 2 | |
| Fine thread-2 | - | - | - | - | - | 1 | 1.25 | - | - | 2 | 1.5 | 2 | - | - | - | - | |
| da | max | 4.6 | 5.75 | 6.75 | 7.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 19.5 | 21.6 | 23.8 | 25.9 | 29.2 | 32.4 | 35.6 |
| min | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 | 30 | 33 | |
| de | max | / | / | / | / | / | / | 16 | 18 | 22 | 25 | 28 | 32 | 34 | 38 | 42 | 46 |
| min | / | / | / | / | / | / | 15.57 | 17.57 | 21.48 | 24.3 | 27.3 | 31 | 33 | 37 | 41 | 45 | |
| dw | min | 5.9 | 6.9 | 8.9 | 9.5 | 11.6 | 14.6 | 16.6 | 19.6 | 22.5 | 24.9 | 27.7 | 31.4 | 33.2 | 38 | 42.7 | 46.6 |
| e | min | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 17.77 | 20.03 | 23.35 | 26.75 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 |
| m | max=nominal size | 5 | 6 | 7.5 | 8 | 9.5 | 12 | 15 | 16 | 19 | 21 | 22 | 26 | 27 | 30 | 33 | 35 |
| min | 4.7 | 5.7 | 7.14 | 7.64 | 9.14 | 11.57 | 14.57 | 15.57 | 18.48 | 20.16 | 21.16 | 25.16 | 26.16 | 29.16 | 32 | 34 | |
| w | max | 3.2 | 4 | 5 | 5.5 | 6.5 | 8 | 10 | 11 | 13 | 15 | 16 | 18 | 19 | 22 | 24 | 26 |
| min | 2.9 | 3.7 | 4.7 | 5.2 | 6.14 | 7.64 | 9.64 | 10.57 | 12.57 | 14.57 | 15.57 | 17.57 | 18.48 | 21.48 | 23.48 | 25.48 | |
| m1 | min | 2.3 | 3 | 3.8 | 4.2 | 4.9 | 6.1 | 7.7 | 8.2 | 9.8 | 11.2 | 11.9 | 13.5 | 14.2 | 16.6 | 18.2 | 19.8 |
| n | max | 1.45 | 1.65 | 2.25 | 2.25 | 2.75 | 3.05 | 3.8 | 3.8 | 4.8 | 4.8 | 4.8 | 5.8 | 5.8 | 5.8 | 7.36 | 7.36 |
| min | 1.2 | 1.4 | 2 | 2 | 2.5 | 2.8 | 3.5 | 3.5 | 4.5 | 4.5 | 4.5 | 5.5 | 5.5 | 5.5 | 7 | 7 | |
| s | max=nominal size | 7 | 8 | 10 | 11 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 |
| min | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | |
| Series ② | Split Pin as in DIN EN ISO 1234 | 1x10 | 1.2x12 | 1.6x14 | 1.6x14 | 2x16 | 2.5x20 | 3.2x22 | 3.2x25 | 4x28 | 4x32 | 4x36 | 5x36 | 5x40 | 5x45 | 6.3x50 | 6.3x56 |
| per 1000 units≈kg | 1.12 | 2.3 | 3.16 | 3.96 | 7.35 | - | - | - | 38.9 | 57.5 | 75.2 | - | 131 | 192 | 264 | 333 | |
|
Thread Size D |
M36 | (M39) | M42 | (M45) | M48 | (M52) | M56 | (M60) | M64 | (M68) | M72 | (M76) | M80 | (M85) | M90 | M100 | |
| P | Pitch (Coarse thread) | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 | 6 | - | - | - | - | - | - |
| Fine thread-1 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 6 | 6 | 6 | 6 | 6 | 6 | |
| Fine thread-2 | - | - | - | - | - | - | - | - | - | - | 4 | 4 | 4 | 4 | 4 | 4 | |
| da | max | 38.9 | 42.1 | 45.4 | 48.6 | 51.8 | 56.2 | 61 | 64.8 | 69.1 | 73.4 | 77.8 | 82.1 | 86.4 | 91.8 | 97.2 | 108 |
| min | 36 | 39 | 42 | 45 | 48 | 52 | 56 | 60 | 64 | 68 | 72 | 76 | 80 | 85 | 90 | 100 | |
| de | max | 50 | 55 | 58 | 62 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 120 | 130 |
| min | 49 | 53.8 | 56.8 | 60.8 | 63.8 | 68.8 | 73.8 | 78.8 | 83.6 | 88.6 | 93.6 | 98.6 | 103.6 | 108.6 | 118.6 | 128.4 | |
| dw | min | 51.1 | 55.9 | 60.6 | 64.7 | 69.4 | 74.2 | 78.7 | 83.4 | 88.2 | 92.9 | 97.7 | 102.4 | 107.2 | 111.9 | 121.1 | 135.4 |
| e | min | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 | 110.51 | 116.16 | 121.81 | 127.46 | 133.11 | 144.08 | 161.02 |
| m | max=nominal size | 38 | 40 | 46 | 48 | 50 | 54 | 57 | 63 | 66 | 69 | 73 | 76 | 79 | 88 | 92 | 100 |
| min | 37 | 39 | 45 | 47 | 49 | 52.8 | 55.8 | 61.8 | 64.8 | 67.8 | 71.8 | 74.8 | 77.8 | 86.6 | 90.6 | 98.6 | |
| w | max | 29 | 31 | 34 | 36 | 38 | 42 | 45 | 48 | 51 | 54 | 58 | 61 | 64 | 68 | 72 | 80 |
| min | 28.48 | 30.28 | 33.38 | 35.38 | 37.38 | 41.38 | 44.38 | 47.38 | 50.26 | 53.26 | 57.26 | 60.26 | 63.26 | 67.26 | 71.26 | 79.26 | |
| m1 | min | 21.9 | 23.5 | 25.9 | 27.5 | 29.1 | 32.3 | 34.7 | 37.1 | 39.3 | 41.7 | 44.9 | 47.3 | 49.7 | 52.9 | 56.1 | 62.5 |
| n | max | 7.36 | 7.36 | 9.36 | 9.36 | 9.36 | 9.36 | 9.36 | 11.43 | 11.43 | 11.43 | 11.43 | 11.43 | 11.43 | 14.43 | 14.43 | 14.43 |
| min | 7 | 7 | 9 | 9 | 9 | 9 | 9 | 11 | 11 | 11 | 11 | 11 | 11 | 14 | 14 | 14 | |
| s | max=nominal size | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 130 | 145 |
| min | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | 97.8 | 102.8 | 107.8 | 112.8 | 117.8 | 127.5 | 142.5 | |
| Series ② | Split Pin as in DIN EN ISO 1234 | 6.3x63 | 6.3x71 | 8x71 | 8x80 | 8x80 | 8x90 | 8x100 | 10x100 | 10x100 | 10x112 | 10x112 | 10x125 | 10x140 | 10x140 | 10x140 | 10x160 |
| per 1000 units≈kg | 447 | 584 | 710 | 860 | 1060 | 1300 | 1500 | 1800 | 2150 | 2500 | 2900 | 3300 | 3700 | 4100 | 5450 | 7600 | |
①,Number of Slots:
≤M39: 6
M42~M68: 8
≥M72: 10
②,The split pin lengths have been given for guidance only.
③,Material:
a) Steel, Property class: d < 5mm: subject to agreement; 5mm≤d≤39mm: 6,8,10; d > 39mm: subject to agreement. Standard DIN EN ISO 898-2
b) Stainless steel, Property class: d≤20mm: A2-70; 5mm < d≤39mm: A2-50; d > 39mm: subject to agreement. Standard DIN EN ISO 3506-2
c) Non-ferrous metal, Property class (material): CuZn=copper zinc alloy. Standard DIN EN 28839
DIN 935-3 - 2000 Hexagon Slotted Nuts - Part 3: Metric Coarse Pitch Thread, Product Grade C
|
Thread Size D |
M12 | M16 | M20 | M24 | (M27) | M30 | (M33) | |
| d | ||||||||
| P | Pitch | 1.75 | 2 | 2.5 | 3 | 3 | 3.5 | 3.5 |
| da | min | 12 | 16 | 20 | 24 | 27 | 30 | 33 |
| max | 13 | 17.3 | 21.6 | 25.9 | 29.2 | 32.4 | 35.6 | |
| dw | min | 16.1 | 21.7 | 27.7 | 33.2 | 38 | 42.7 | 46.6 |
| e | min | 19.85 | 26.17 | 32.95 | 39.55 | 45.2 | 50.85 | 55.37 |
| m | max=nominal size | 15 | 19 | 22 | 27 | 30 | 33 | 35 |
| min | 13.2 | 16.9 | 19.9 | 24.9 | 27.9 | 30.5 | 32.5 | |
| M1 | min | 10.6 | 13.5 | 15.9 | 19.9 | 22.3 | 24.4 | 26 |
| n | min | 3.5 | 4.5 | 4.5 | 5.5 | 5.5 | 7 | 7 |
| max | 3.98 | 4.98 | 4.98 | 5.98 | 5.98 | 7.58 | 7.58 | |
| s | max=nominal size | 18 | 24 | 30 | 36 | 41 | 46 | 50 |
| min | 17.57 | 23.16 | 29.16 | 35 | 40 | 45 | 49 | |
| w | min | 9.48 | 12.3 | 15.3 | 18.16 | 21.16 | 23.16 | 25.16 |
| max | 10 | 13 | 16 | 19 | 22 | 24 | 26 | |
| Series | Splint pins (ISO 1234) | 3.2 × 22 | 4 × 28 | 4 × 36 | 5 × 40 | 5 × 45 | 6.3 × 50 | 6.3 × 56 |
| per 1000 units≈kg | - | 44 | 82 | 142 | 208 | 295 | 352 | |
Material:
Steel, Property class: ≤M16: 5；> M16: 4. Standard DIN EN 20898-2
